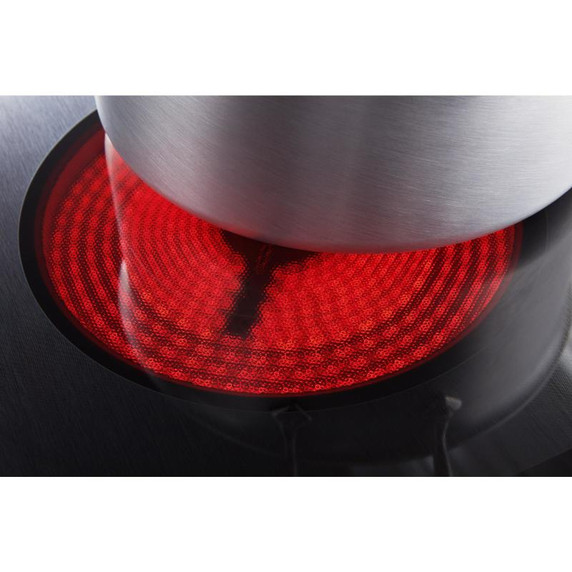

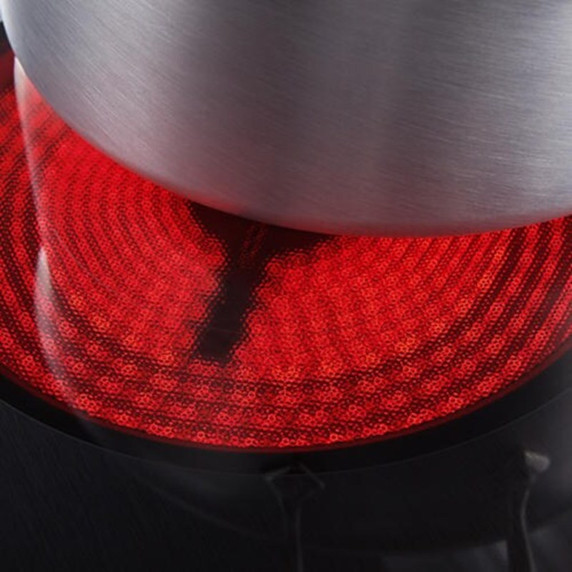

FlexHeat™ Dual Radiant ElementGet two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.

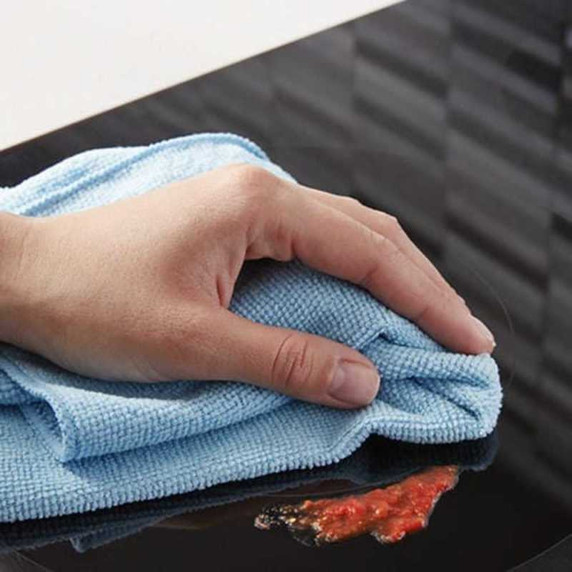

Easy-Wipe Ceramic Glass CooktopWiping up spills is simple with the easy-to-clean cooktop.
Warm Zone ElementKeep food warm while you're finishing the rest of the meal using this low-powered element.

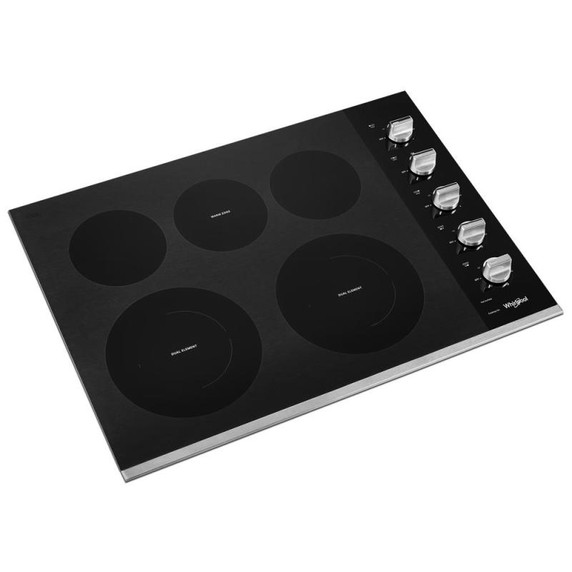

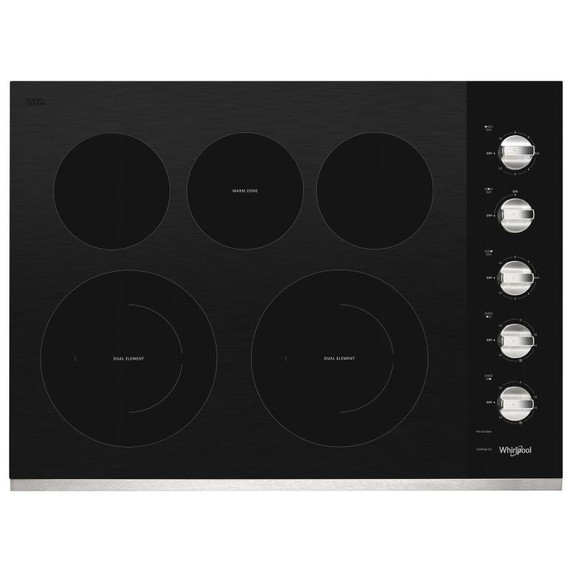

5-Element CooktopProvides five independent cooking surface areas.
Hot Surface Indicator LightSee when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.

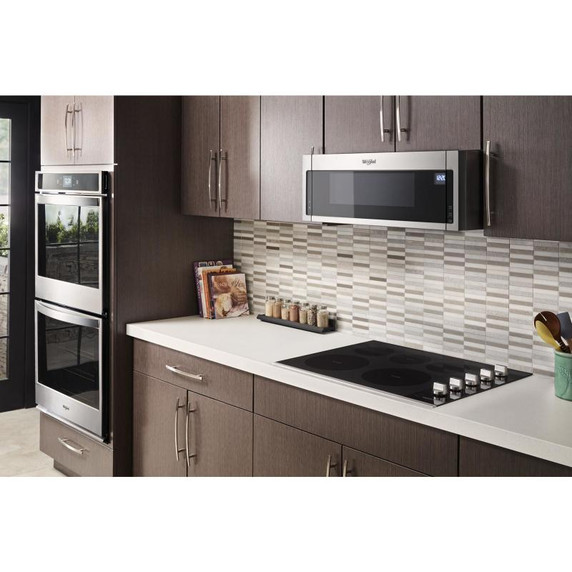

Wall Oven CompatibleInstall this cooktop to work with a wall oven or on its own for added flexibility.
6" Extra ElementCook small dishes like sides and sauces on the 6" extra element.
ADA compliantThis cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

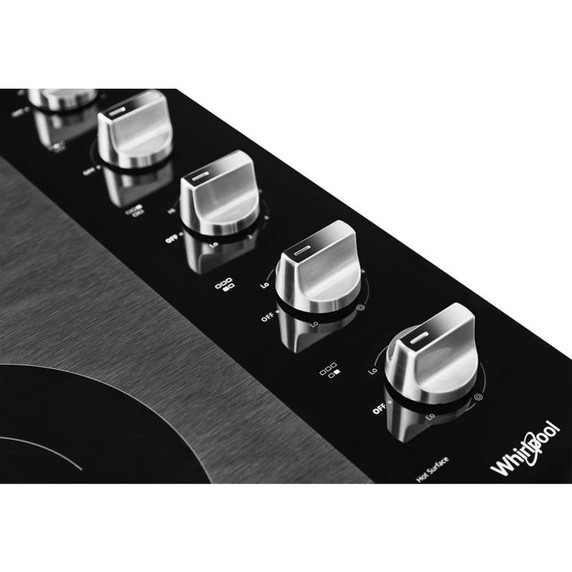

Control TypeManual
Knob TypeDishwasher Safe
Control LocationSide
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
Fuel TypeElectric
Country Of OriginUSA
Optional AccessoriesW10355051B
Extended Service Plan ParentEW05IW1Y, EW05IW4Y, EW05IW2Y
Product To Product PairsUXT4130ADS, WVU17UC0JW, WVU37UC0FS, WVW73UC0LS, UXT5530AAS, UXT5230BDS, UVL5430JSS, WVU57UC0FS, WVW53UC0HV, WVW53UC0LS, WVW57UC0FS, WVW51UC0LS, WVU17UC0JS
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Whr CooktopADA Compliant
ULYes
ADA CompliantYes
Size In30
Cooktop TypeTraditional
Combinations With OvenWOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Center Rear Element Burner TypeWarming
Right Front Element Burner Power3000W/1900W
Right Front Element Burner Size10in./6in.
Center Rear Element Burner Size6in.
Left Front Element Burner Power3000W/1900W
Left Front Element Burner Size10in./6in.

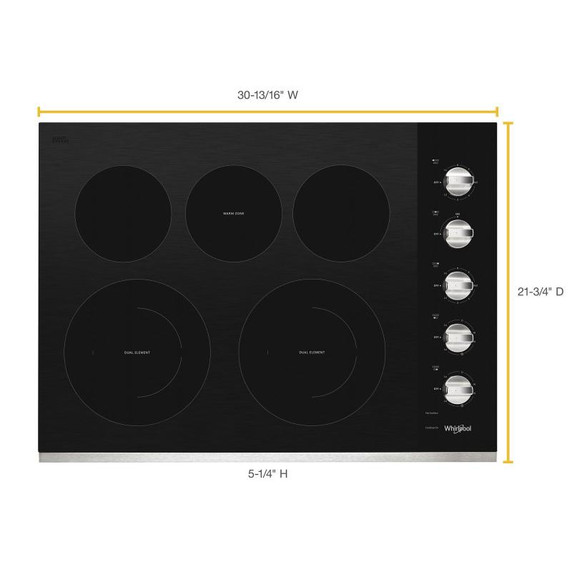

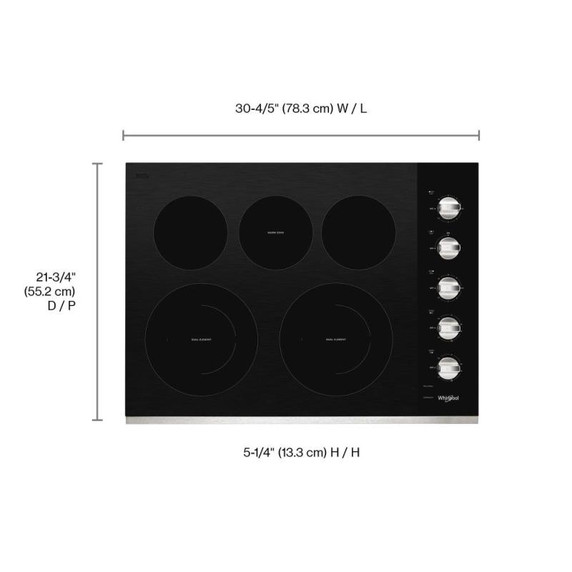

Depth22.88"
Height5.25"
Maximum Height5.25"
Net Weight41.0 lbs.
Width30.81"
Cutout Depth20.38"
Cutout Width29.06"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch35.0
