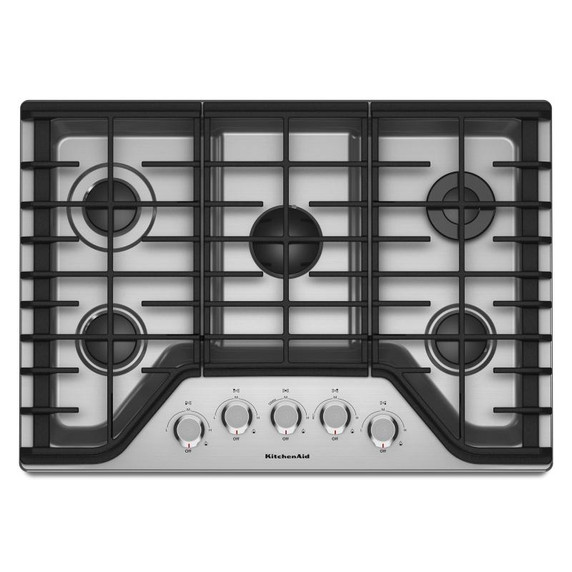

Kitchenaid® 30" 5-Burner Gas Cooktop KCGS350ESS

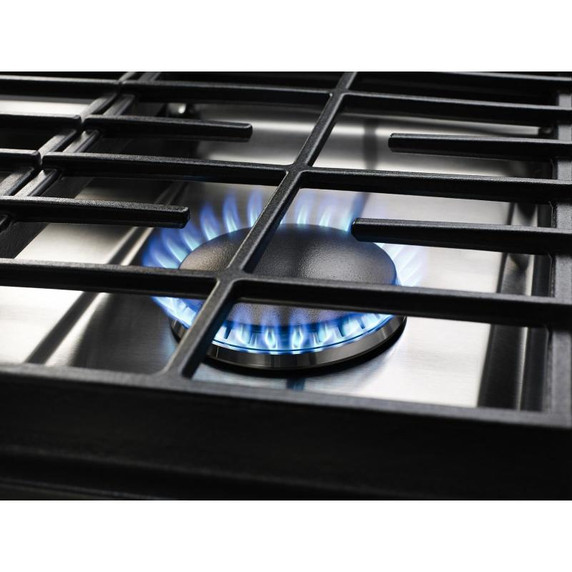

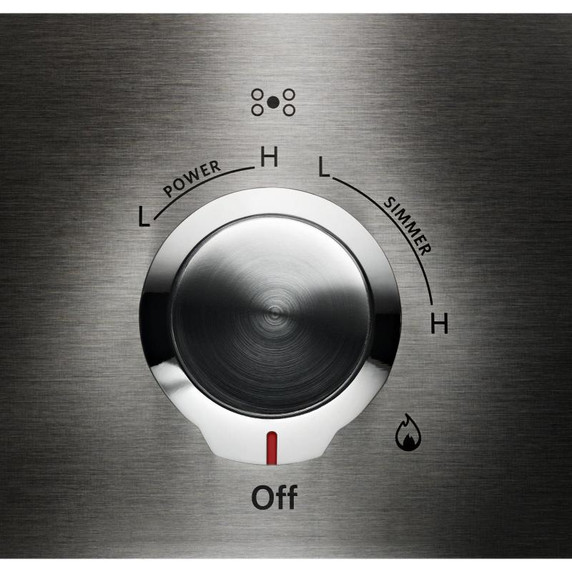

17,000 BTU Multiflame BurnerWorks as an all-purpose professional burner, providing the ability to use both high- and low-temperature cooking methods so you can go from a boil to a simmer without changing burners.

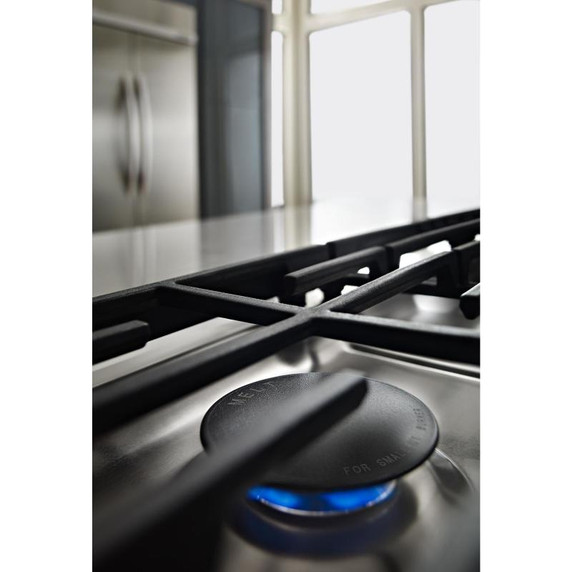

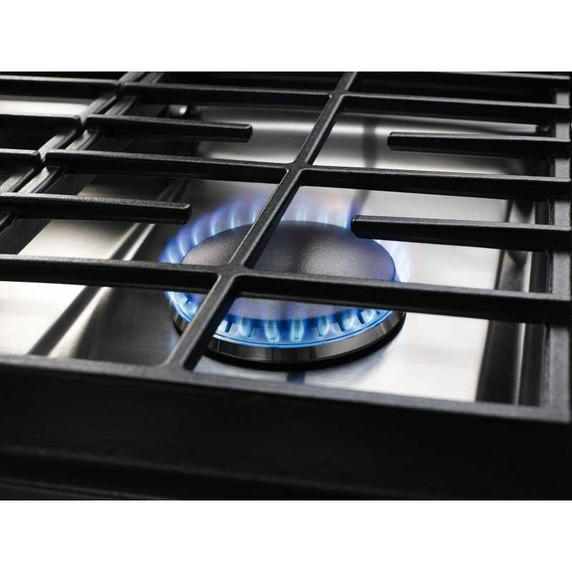

5,000 BTU Even-Heat™ Simmer BurnerA diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.

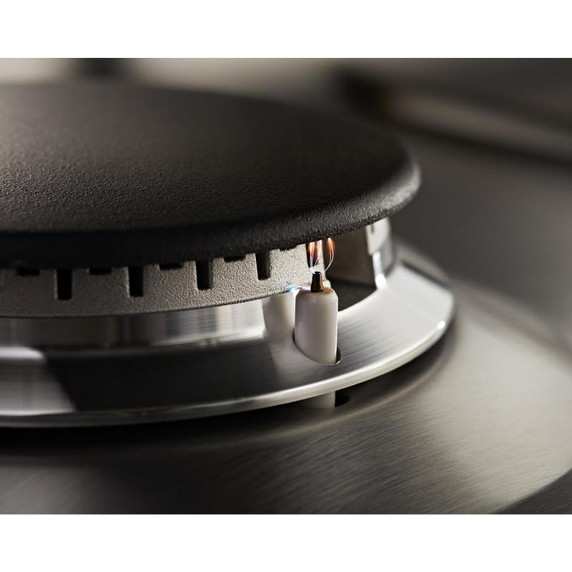

Electronic IgnitionAutomatically lights burners so no standing pilot light is needed
Full-Width Cast-Iron GratesEnhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
Multi-Finish KnobsEnhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
LP Conversion Kit IncludedAllows you to convert the cooktop so it can be used with LP gas.
Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Configuration and Overview
Fuel TypeGas
Specifications
Country Of OriginUSA
Optional AccessoriesW10685483
Extended Service Plan ParentEW07IW2Y, EW07IW4Y, EW07IW1Y
Product To Product PairsKVWB600HBS, KVUB400GSS, KVWB400DSS, KVWB600DSS, UVL5430JSS, KXD4630YSS, KVUB600DSS
Features
Hot Surface Indicator LightNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
GriddleNo, Optional Accessory
Refinements
Kad CooktopADA Compliant; Even-Heat Melt Burner
Certifications
ULYes
ADA CompliantYes
Description
Size In30
Cooktop TypeTraditional
Combinations With OvenKOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Cooktop Details
Center Rear Element Burner TypeDual
Cooktop Element StyleSealed Burners
Center Rear Element Burner Power17000BTU
Left Front Element Burner TypeSealed Burner
Number Of Cooking Element Burners5
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Right Rear Element Burner TypeSimmer
Left Front Element Burner Power9100BTU
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power10000BTU
Right Front Element Burner Power9100BTU

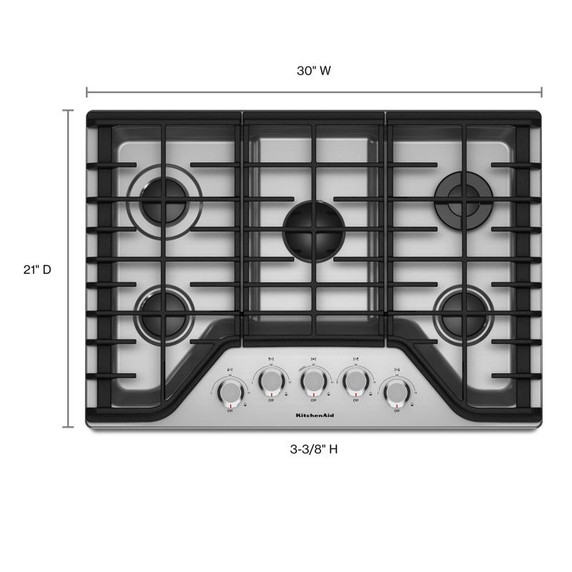

Depth21.0"
Height3.69"
Maximum Height3.69"
Minimum Height4.0"
Net Weight58.0 lbs.
Width30.0"
Cutout Depth19.0"
Cutout Height5.25"
Cutout Width29.0"
Carton Depth Inch25.0
Carton Height Inch12.04
Carton Width Inch34.76
