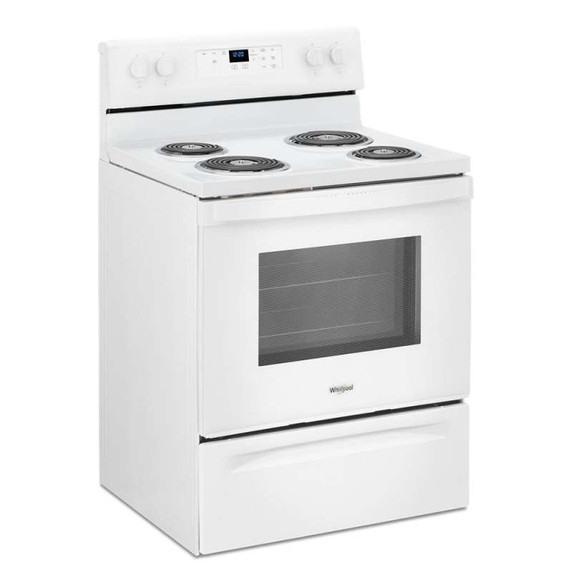

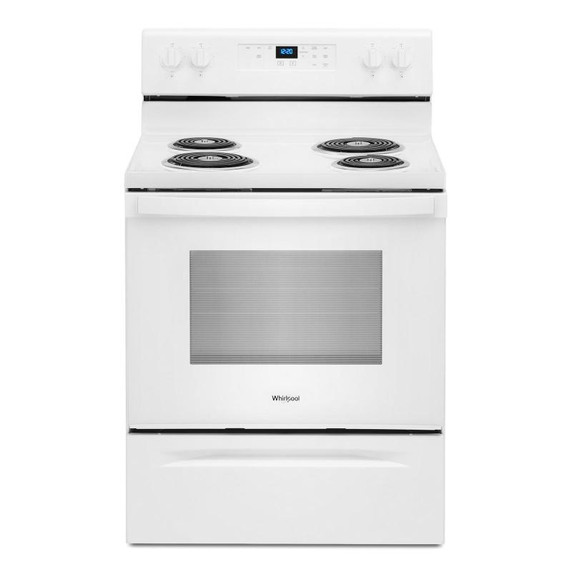

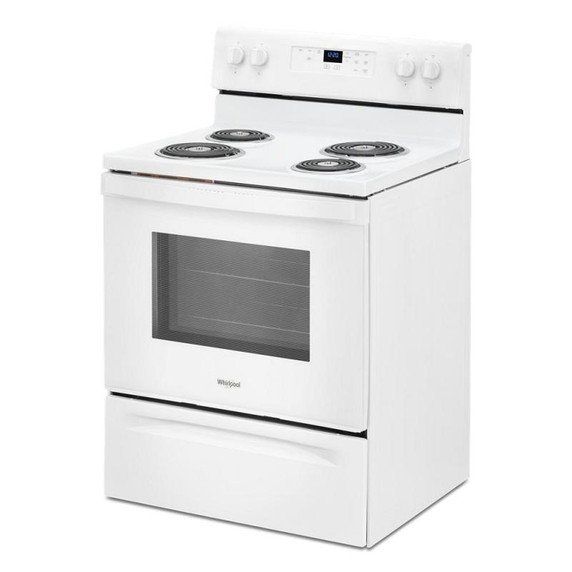

This Whirlpool® electric range helps you get dinner to the table, even on a hectic schedule. The Keep Warm setting prevents dinner from getting cold. Closed door broiling helps keep the kitchen comfortable. This self cleaning oven also allows you to avoid unintended use with an oven control lock.
Features
Top 3 Features
Keep Warm settingKeep dishes from getting cold with this setting that delivers low heat to the oven.

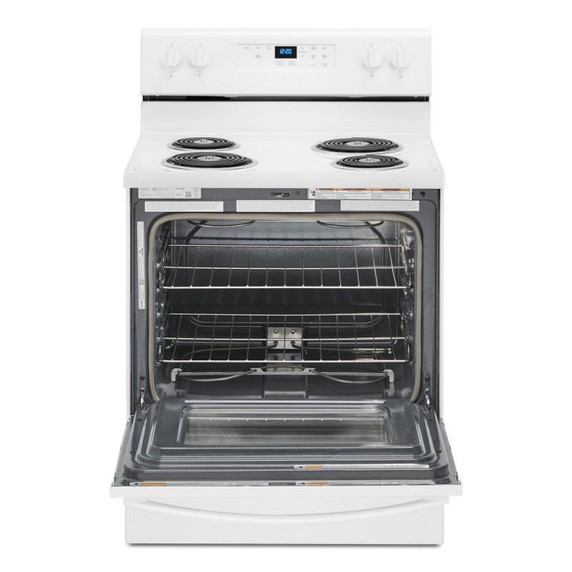

Large Oven WindowKeep an eye on your meal through the large oven window.
Closed Door BroilingMaintain the optimal cooking temperature for food while still keeping the kitchen comfortable and cool using this broiling temperature management system that helps prevent overheating.
Additional Features
Control Lock ModeDisable the control panel to avoid unintended use and easily clean controls.
Adjustable Self-Cleaning TechnologyClean without harsh chemicals or special cleaners by running this high-temperature setting that automatically cleans the oven according to a preprogrammed cycle.
4.8 Cu. Ft. CapacityEasily cook large meals with 4.8 cu. ft. capacity.
Upswept SpillGuard™ CooktopClean up faster with a cooktop that has raised edges to help contain spills.
Specifications
Configuration and Overview
Energy
Annual Energy Usage Kwh510
Specifications
Extended Service Plan ParentEW04IW4Y, EW04IW2Y, EW04IW1Y
Product To Product PairsUXT5530AAS, UXT5230BDS, UXT4130ADS, UVL5430JSS, WVW73UC0LS, WVW57UC0FS, WVW53UC0LS, WVW53UC0HV, WVW51UC0LS, WVU57UC0FS, WVU37UC0FS, WVU17UC0JW, WVU17UC0JS
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
Certifications
Energy Rating Kwh Year510
Exterior
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Details
Cooktop Surface MaterialPorcelain Coated Steel
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Oven Cooking SystemThermal
Broiler Element Power3400W
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Broiler LocationTop Center
Oven Control TypeElectronic Touch
Oven Control Knob ColorWhite
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Cooktop Details
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Cooktop Control LocationBackguard
Left Front Element Burner Size8in.
Left Front Element Burner TypeStandard
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Right Rear Element Burner Size8in.
Cooktop Element StyleCoil
Left Front Element Burner Power2400W
Left Rear Element Burner Power1500W
Right Front Element Burner Power1500W
Right Rear Element Burner Power2400W
Dimensions
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles28.0"
Depth With Door Open 90 Degree46.69"
Capacity FT3 (cubic feet)4.8
